AC 230V LED Strip Rectifier Built-in

Ledway is a professional high voltage led strips manufacturer. We design new 220V AC led strips with ac IC. The high voltage led strip light is 120led/m, 12w/m, every 12led cuttable,100mm cuttable. This is easy use for some small spaces which can not use

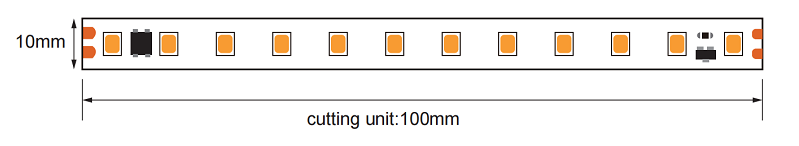

Size of AC 220V LED Strip Lights

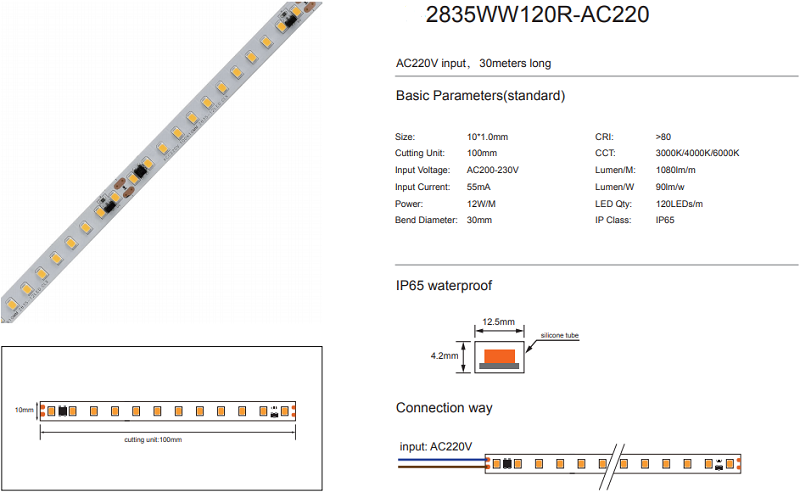

Datasheet of AC 220V LED Strip Lights

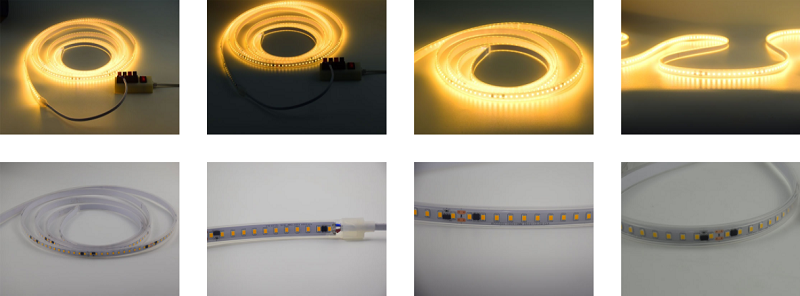

Photos of AC 220V LED Strip Lights

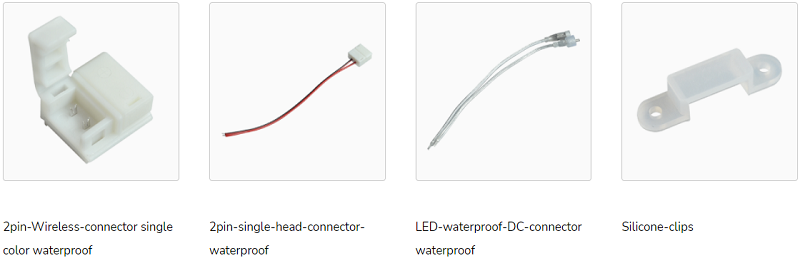

2835 LED Strip Light Accessories

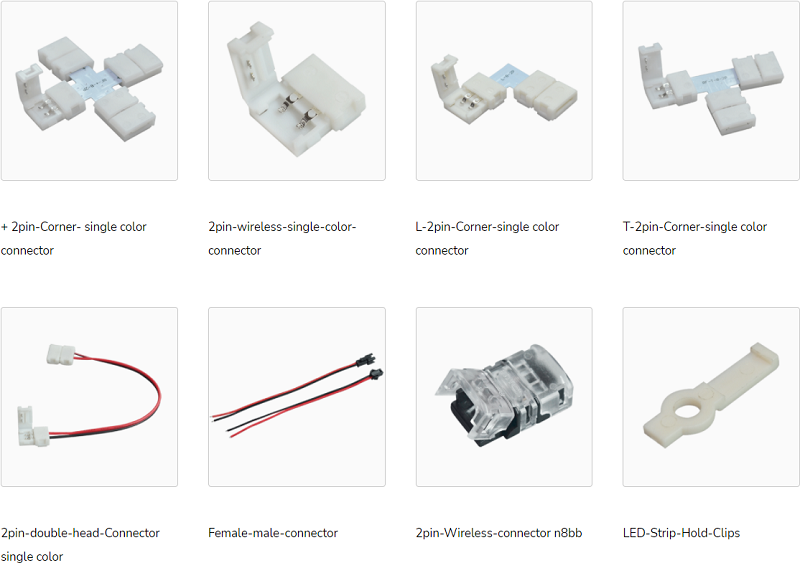

Non-Waterproof  Types Led Strip Light Connector


Waterproof  Types Led Strip Light Connector


Model NoLw-2835WW120R-AC220
SMD TypeEpistar 2835
Input voltageAC220V
LED Q'ty120LEDs/m
Power/m (MAX)12W/M
Max current / LED 0.09A/m
SMD LED spacing8.3mm
Lumen / m(Max)1000-1200LM
CRI(Ra)>80Ra
Minim cuttable length100mm (12LEDs)
PCB Width10mm
Energy gradeA
Warranty3years
Working hour30000h
Illumination Angle120°
Working temperture.-20℃~+45℃

Questions You May Ask About Our 220V Led Light Strips

1, Does your 220V LED strip light need a led power supply?

Our led strip light is driverless. This AC 220V led strip light don't need led power supply. You can hard ware the strip light to AC 220V.

2, How long does these AC220V led strip continue?

We can make different wattages of the AC 220V led strip lights. The length of the AC led strip light is according to the total wattage of the strips.

We suggest not more than 300W of the total wattage.

For example, if we make 12w/m, then 300/12=25meter. That means this strip light can continue 25 meter.

If we make 5w/m, then 300/5=60meter. That means this AC strip light can continue 60 meter.

Max length we suggest not more than 50 meter.

3, Can we use this AC led strip light in any different voltage?

The AC led strip light can use input voltage from 200-240VAC.

4, Question about the led strip light flicker.

That is no problem. Because of the video is taken by mobile phone. Human eyes can not see the flicker.

5, Can you custom make AC110V led strip light?

Yes, we can custom make AC110V / AC120V led strip light. MOQ 1000meter.

6, Does these AC led strips need a transformer?

This AC led strip light don't need transformer. It can easy for using in lighting projects.

AC 220v LED strip light doesn't need a driver, but it has IC in the PCB.

That means the cost will be higher than DC12V led strip light.

AC 220V led strip light continues longer than DC12V led strips.

DC 12V led strip light is safe. You can touch the led strip light.

AC 220V led strip have silicon tube protect.Pls touch if not any tube protect.
