A Comprehensive Guide to Wiring LED Strip Lights

Introduction

LED strip lights offer a versatile and efficient lighting solution for various applications, from home decor to commercial settings. However, wiring LED strip lights correctly is crucial to ensure optimal performance and safety. This comprehensive guide provides step-by-step instructions for wiring LED strip lights, focusing on both basic and advanced configurations.

Understanding LED Strip Light Components

Before diving into the wiring process, it's essential to understand the key components of LED strip lights:

· ‌LED Strips‌: The core of the lighting system, consisting of multiple LEDs mounted on a flexible PCB.

· ‌Power Supply‌: Converts AC power from the main electrical grid to DC power suitable for LEDs.

· ‌Controllers (Optional)‌: Allow for dimming, color changing, and other effects.

· ‌Connectors and Wires‌: Essential for linking LED strips, controllers, and the power supply.

Basic Wiring Instructions

Step 1: Choose the Right Power Supply

· ‌Voltage‌: Ensure the power supply's voltage matches the LED strips' operating voltage (typically 12V or 24V).

· ‌Wattage‌: Calculate the total wattage of the LED strips you intend to power and select a power supply with sufficient capacity.

Step 2: Preparing the LED Strips

· ‌Cutting the Strips‌: Use scissors or a utility knife to cut the strips at designated cut marks, maintaining the circuit's integrity.

· ‌Stripping the Wires‌: Strip about 1/2 inch of insulation from the ends of the wires you'll be connecting.

Step 3: Connecting the LED Strips

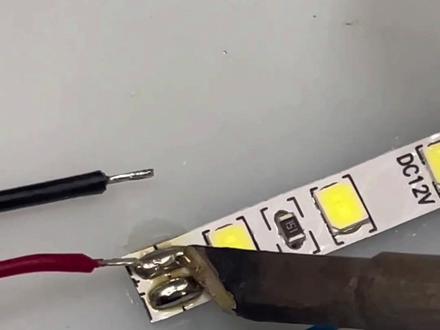

· ‌Soldering Connections‌: For permanent installations, solder the wires together. Ensure good contact between the wires and apply heat shrink tubing for insulation.

· ‌Using Connectors‌: For easier disassembly, use LED strip connectors. Insert the stripped wires into the appropriate ports and secure them.

Step 4: Connecting to the Power Supply

· ‌Polarity‌: Ensure correct polarity by connecting the positive (red) wire to the positive terminal on the power supply and the negative (black/blue) wire to the negative terminal.

· ‌Powering On‌: Once all connections are secure, turn on the power supply. Ensure the LED strips light up as expected.

Advanced Wiring Configurations

Parallel Connection

For longer runs or higher brightness, connect multiple LED strips in parallel:

· ‌Connect Positive Wires‌: Connect the positive wires of all LED strips together.

· ‌Connect Negative Wires‌: Connect the negative wires of all LED strips together.

· ‌Connect to Power Supply‌: Attach the combined positive and negative wires to the power supply.

Series Connection

Connecting LED strips in series can be useful in specific applications but requires careful calculation of voltage drop:

· ‌Voltage Drop‌: Each LED strip adds resistance, causing voltage to drop. Ensure the total voltage drop does not exceed the power supply's voltage.

· ‌Sequential Connection‌: Connect the positive wire of the first strip to the power supply's positive terminal, the negative wire of the first strip to the positive wire of the second strip, and so on.

· ‌Final Connection‌: Connect the negative wire of the last strip to the power supply's negative terminal.

Troubleshooting and Safety Tips

· ‌Check Connections‌: Ensure all connections are tight and free of corrosion.

· ‌Voltage and Current Limits‌: Never exceed the LED strips' or power supply's voltage and current ratings.

· ‌Heat Management‌: Use heat sinks or aluminum profiles to dissipate heat generated by high-wattage LED strips.

· ‌Safety First‌: Always disconnect the power supply before making any electrical connections or modifications.

Conclusion

Wiring LED strip lights correctly is essential for achieving the desired lighting effects while ensuring safety and efficiency. By following the steps outlined in this guide, you can confidently install and configure LED strip lights for any project.
