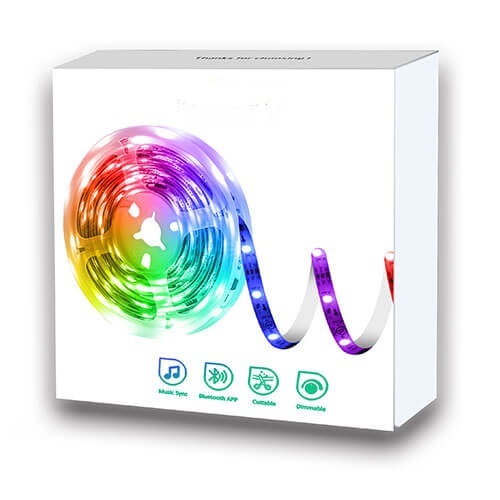

RGB+W Bluetooth+WIFI App Music strip

SMD5050 led strip light have single color,RGB,RGB+W,RGB+CCT,addressable tape light with magic color.Contact us when sourcing strip light factory from China.



Low voltage: qualified material and short circuit protection; the working voltage of this led light strip is only 12 volt adapter and can touch
Multiple scenes: suitable for a variety of applications, such as bedroom,living room, kitchen, bar,and parties,
Bright LED Lights: it features 30 bright 5050 LEDs that easily light up a room, bedroom, dorm room, kitchen countertop. Suitable for birthday party, home gathering
Safe for Use: The strip lights very suitable for indoor lighting and decor. The working voltage is 12V. extremely low heat. last longer up to 50000 hours.  safe adapter, better lighting experience.It is touchable and safe to children.
Cuttable and Linkable:The LED lights can be easily cut and linked with other strip LED lights, which can be cut every 3 LEDs along with the cutting marks. You can also customize the length of the led lights, while arrows of the lights should be faced with each other when connecting. (Please note that if you want to reuse the cut part, you need to buy a connector to make it work again)
RGB Strip Lights with 16 Color Changing & 4 Modes: RGB LED strip comes with not only RGB, white,green, and other colors, but also 4 Modes DIY options. With adjustable 6-level brightness, the strip light can be changed to warm or bright. You can DIY the light strip according to the size of your room to make it fit the furniture you need to decorate
24-Key Remote Control &12V Safe Voltage: The led strip IR remote controller makes it more convenient for you to control the light strip. All you need to do is connect the power supply and use it directly, and the IR remote control has overload, short circuit protection, and memory function. (Please note that the arrow position of the controller must be aligned with the "+ 12V" light strip mark, otherwise the light will not turn on.)
Wide Application:RGB led strip lights are a suitable ornament, transforms your home's atmosphere, for kitchen, ceiling, back of the tv, desk, stairs, bar, Halloween,Christmas tree.

SMD5050 Magic Color Series

Ledway SMD 5050 LED strip light Magic color series is SMD Epistar 5050 RGB type with DC12V and DC24V constant voltage input.IP33 & IP65 waterproof. There are 30Leds per meter and 60Leds per meter version. The minimum cuttable length is 50mm and 100mm, and the PCB width is 10mm.

1. Epistar SMD5050 RGB LED with Ic control

2. IP33, IP65 Waterproof vision

3. Input DC12V Constant Voltage Version

4. Different types of SMD5050 led strips for options

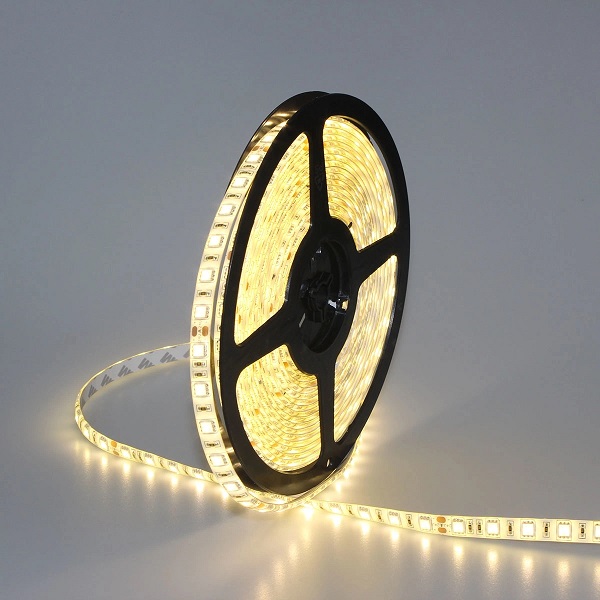

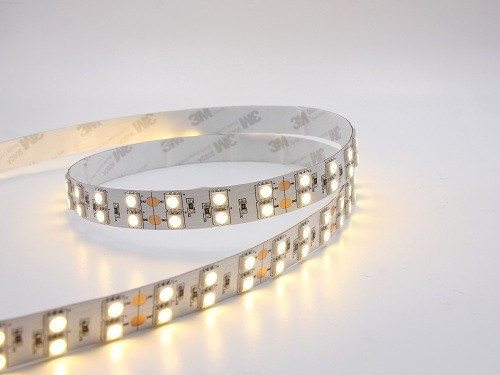

SMD5050 Single Color Series

Ledway SMD 5050 LED strip light Single color series is hight brightness led strip light.SMD Epistar 5050 type with DC12V and DC24V constant voltage input.IP33, IP55, IP65 and IP67 waterproof. There are 30Leds per meter, 60Leds per meter and 120Leds per meter version, PCB width is 10mm. Customized design is warmly welcome.


1.High Color Rendering Index(CRI>80 CRI>90)

2.IP33, IP55, IP65, IP67 Waterproof vision

3.High Brightness: 1200lm/m for Single-Line LED Strip

4.Input DC12V, DC24V Constant Voltage Version

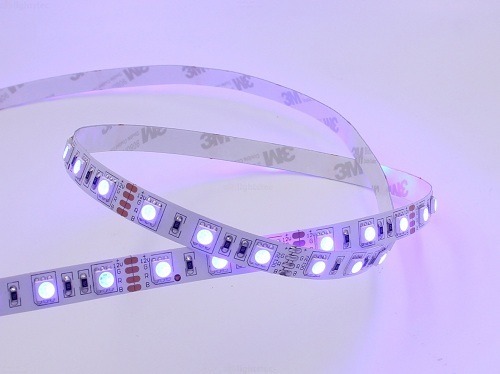

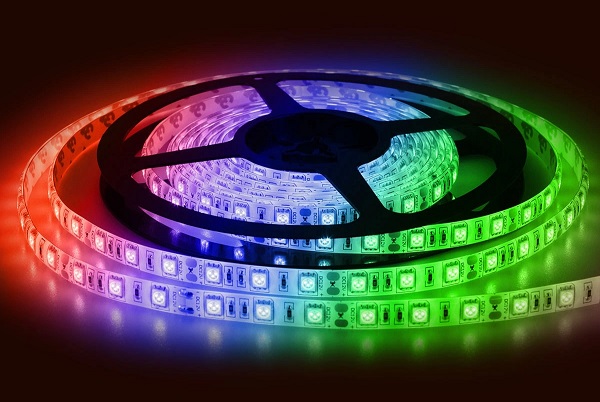

SMD5050 RGB Color Series

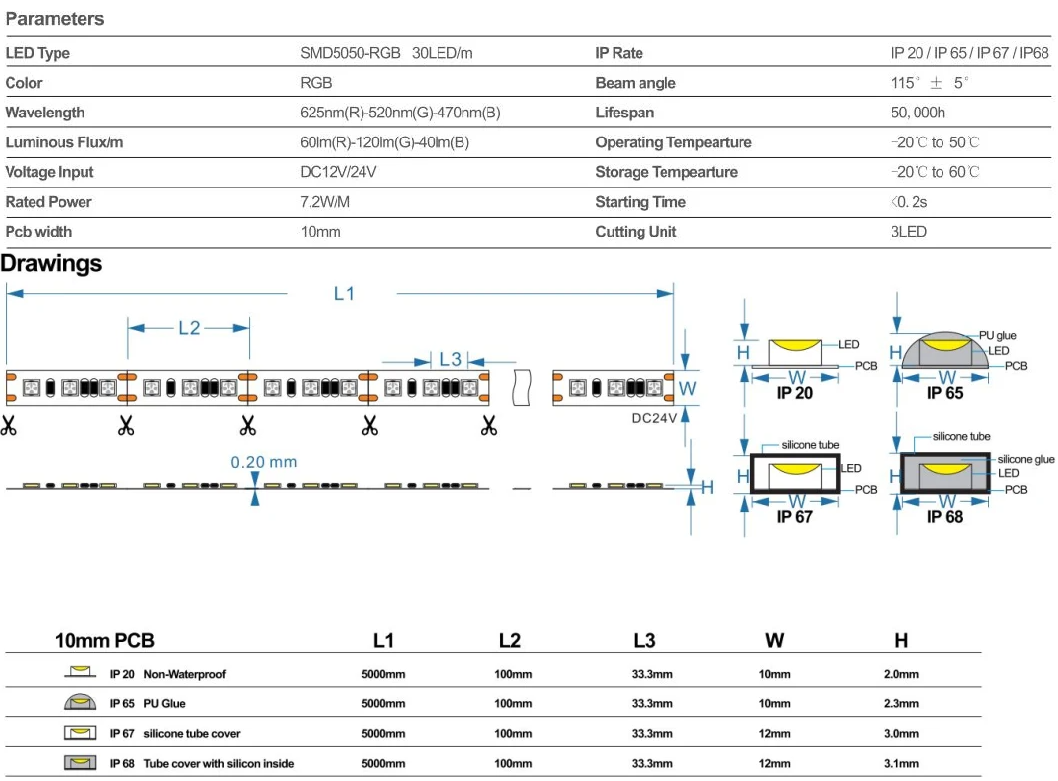

Ledway SMD 5050 LED strip light RGB color series is hight brightness led strip light. SMD Epistar 5050 RGB type with DC12V and DC24V constant voltage input.IP33, IP55, IP65 and IP67 waterproof. There are 30Leds per meter and 60Leds per meter version. The Minimum cuttable length is 50mm and 100mm, and the PCB width is 10mm.


1.Epistar SMD5050 RGB LED with Ic control

2.IP33, IP55, IP65, IP67 Waterproof vision

3.Input DC12V, DC24V Constant Voltage Version

4.Different types of SMD5050 led strips for options


SMD5050 RGBW Color Series

Ledway SMD 5050 LED strip light RGBW color series is SMD Epistar 5050 type with DC12V and DC24V constant voltage input.IP33, IP55, IP65 waterproof. There are 60Leds per meter and 120Leds per meter version. The Minimum cuttable length is 50mm, 100mm and 166.6mm, the PCB width is 12mm or 15mm.


1.Epistar SMD5050 RGB LED with Ic control

2.IP33, IP55, IP65, IP67 Waterproof vision

3.Input DC12V, DC24V Constant Voltage Version

4.Different types of SMD5050 led strips for options


5050 LED Strip Light Accessories

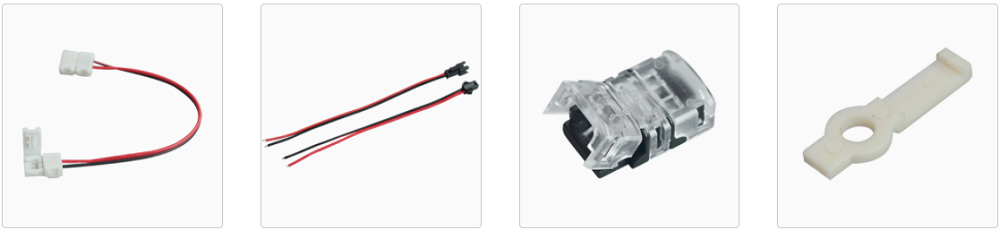

Non-Waterproof  Types Led Strip Light Connector


+ 2pin-Corner- single color connector

2pin-wireless-single-color-connector

L-2pin-Corner-single color connector

T-2pin-Corner-single color connector


2pin-double-head-Connector single color

Female-male-connector

2pin-Wireless-connector n8bb

LED-Strip-Hold-Clips

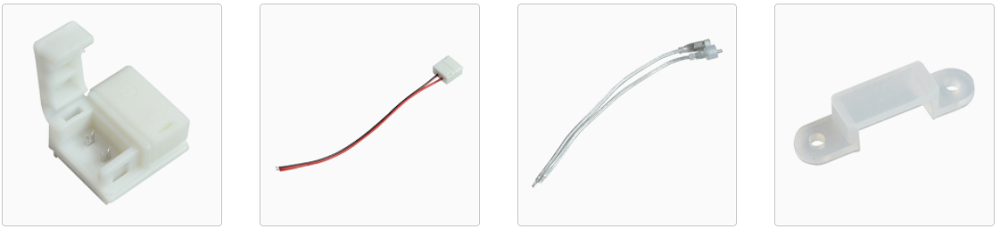

Waterproof  Types Led Strip Light Connector


2pin-Wireless-connector single color waterproof

2pin-single-head-connector-waterproof

LED-waterproof-DC-connector waterproof

Silicone-clips


How To Select SMD5050 Led Strip Light? (The Definitive Buying Guide)

Ledway is one of the best SMD5050 LED light strip manufacturer in China. When you are sourcing SMD5050 led strip light and want to import SMD5050 led strip light from China, This is the right place you are.

In this guide, we will teach you to be an expert in SMD5050 led strip light. And this will help you find a reliable China SMD5050 led strip light manufacturer

What is SMD5050 led strip light?

SMD5050 led strip light is made by SMD5050 led chips and SMT in a PCB board.

Normally, SMD5050 has 3 chips in one led housing.

0.21W/Pcs,18-20lm/pcs

SMD5050 can make many functions led strip lights.

It has a single color, RGB color change, RGB+W 4 color in one led housing,RGB+CCT 5 color in one

And constant current IC inside LED chips, addressable IC inside led.

Does SMD5050 led strip light color temperature change?

If you need led strip light color change, you need two color temperatures led in one led strip light.

Normally, CCT change led strip light to have 2 color temperature led.

One is lower CCT-2700k, one is higher CCT-6500K.

Then you can use a CCT controller to change the color temperature.

But normally, CCT change led strip light is using SMD2835 or SMD3528.

Because the SMD5050 size is bigger and has 6 solder pan.

When mix the color is not good than SMD2835.

Does SMD5050 led strip light have CRI>90 versions?

The higher CRI, the items will more true compare with seeing under sunlight.

At the beginning of the led light industrial, the CRI is low. Approx 60.

But now CRI can higher reach 95.

We have CRI>80, CRI>90 and CRI>95 SMD5050 led strip light.

This is good for high request lighting projects.

Do you have waterproof SMD5050 led strip light?

Waterproof led strip light is better for using in some humid and raining place.

Just like a shower room, swimming pool, veranda, etc.

There is a different level of waterproof design for different places.

IP20 / IP33 -Not waterproof, this only use for indoor

IP55- Silicon surface dropping waterproof. This is changing the lighting vision. We also use this indoor.

IP65- Silicon tube waterproof. We suggest using this raining but don't drop into the water.

IP67/68 - This can use for swimming pool

Can I dim my SMD5050 led strip light?

All of our led strip light is constant current led strip light.

Our SMD5050 led strip light to have DC12V and DC24V.

We can use the 0-10V dimmable power supply to dim SMD5050 led strip light

We can use Dali dimmable driver to dim SMD5050 led strip light

We can use Triac dimmable power supply to dim SMD5050 led strip light

And we can use many kinds of the dimmable led controller to dim tape light

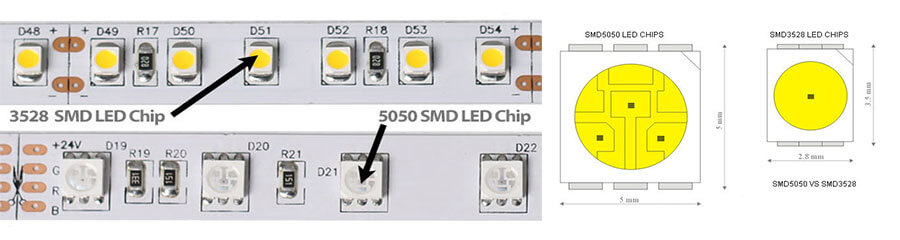

SMD5050 led strip light VS SMD3528 led strip light

SMD5050 is 0.2w/pcs,and 20 lumens pcs.

SMD3528 is 0.06w/pcs,and 7lumens pcs.

So if the same quantity led per meter, then SMD5050 led strip light will more brightness.


Can I use SMD5050 led strip light as a lighting source to make led linear light?

Normally, led linear light is made by strip light, led aluminum profile and led driver.

For some cabinet light, the profile is small. Then means the led is near the cover.

If the led less in one meter, then when lighting you will see dot from the profile cover.

So we suggest using SMD5050 led strip light in big led aluminum profile as lighting source.


Do you have SMD5050 color change led strip light?

SMD5050 led strip light to have some kinds of color change led strip light not only a single color.

SMD5050 RGB led strip light

This led have Red, Green, Blue 3 chips in one led.

And use the controller can change different colors.

SMD5050 rgb+w led strip light

This led have 4 chips in one led housing. Red, Green, Blue, white color.

Does it meet your market ? Please do not hesitaste to contact me.
